3 Outlet Shower Valves
3 Outlet shower valves are a popular choice for a new shower. These shower valves are also known as a 'triple concealed shower valve' or often referred to as a '3 way shower valve'
A 3 outlet shower valve will control the flow and temperature of the water to three shower parts - for example a fixed rain head, slide rail kit and a overflow bath filler. The controls are often in a round or square design and allow full control of the water to whichever part. We also sell shower heads, slide rails kits and bath waste overflow fillers. If you are unsure which parts to order, contact us and we can help!
3 Outlet Shower Valves UK – Triple Concealed Shower Valves
3 outlet shower valves, also known as triple shower valves or 3-way shower valves, are designed to control water flow and temperature to three separate outlets from a single concealed valve system.
Typically installed within the wall, these concealed shower valves allow you to operate combinations such as:
-
Overhead rainfall shower head
-
Handheld shower on a slide rail
-
Bath filler or overflow bath filler
At Home Bathrooms supply high-quality 3 outlet shower valves designed for reliable thermostatic performance and flexible bathroom layouts.
Browse our collection below and order online with fast UK mainland delivery.
What Is a 3 Outlet Shower Valve?

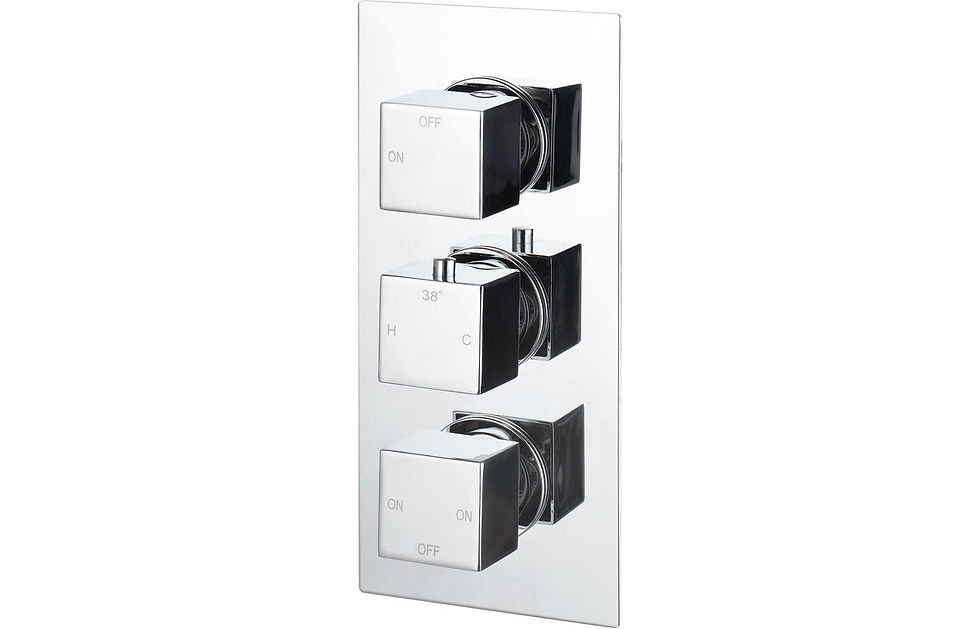

A 3-outlet shower valve is a concealed thermostatic valve that directs water to three different outlets. It allows you to switch between them individually or, depending on the model, operate multiple outlets simultaneously.
These valves are installed behind the wall surface, with only the control plate and handles visible once fitted.
They are commonly used in:
-
Bathrooms with combined bath and shower setups
-
Walk-in showers with multiple shower heads
-
Design-led renovations requiring flexible water control
How Does a Triple Shower Valve Work?
A triple outlet shower valve contains:
-
A thermostatic cartridge to regulate temperature
-
A diverter mechanism to switch between outlets
-
Flow controls to adjust water volume
The diverter allows you to:
-
Select outlet one
-
Select outlet two
-
Select outlet three
-
In some cases, run two outlets together
Always check product specifications to confirm whether simultaneous outlet operation is supported.
Common 3 Outlet Configurations
3 outlet valves are often paired with:
Overhead Rainfall + Handset + Bath Filler
A popular configuration in family bathrooms where a bath and shower share the same system.
Rainfall Head + Handset + Body Jets
Used in larger walk-in shower designs where enhanced coverage is desired.
Ceiling Head + Wall Arm Head + Handset
Allows different shower experiences within one enclosure.
The flexibility of a 3-way shower valve makes it ideal for more advanced bathroom layouts.
Water Pressure & System Compatibility
Because a 3-outlet shower valve may supply multiple outlets, adequate water pressure is important.
Before purchasing, check:
-
Minimum bar pressure requirement
-
Compatibility with combi boilers
-
Suitability for pumped or gravity-fed systems
-
Flow rate capacity if planning simultaneous use
Rainfall heads and multiple outlets perform best in medium to high pressure systems.
If pressure is limited, operating outlets one at a time may provide better performance.
3 Outlet vs 2 Outlet Shower Valves
Understanding the difference helps avoid ordering the wrong configuration.
2 Outlet Shower Valve
Controls two outputs, typically rainfall head + handset.
3 Outlet Shower Valve
Controls three outputs, often adding a bath filler or additional shower head.
If your bathroom layout includes both bath and shower functionality controlled from one panel, a 3 outlet valve is typically required.
Concealed Installation Considerations
Triple shower valves are concealed systems and require:
-
Adequate wall cavity depth
-
Professional installation
-
Access for servicing where possible
-
Correct pipe planning before tiling
They are best suited to full renovations rather than simple shower replacements.
Outlet Shower Valve Styles & Finishes
Our 3 outlet shower valves are available in:
-
Chrome
-
Matt black
-
Brushed brass
-
Contemporary metallic finishes
Matching your shower valve finish with coordinating basin taps, bath taps and accessories creates a cohesive and balanced bathroom design.
Why Buy 3 Outlet Shower Valves from At Home Bathrooms?
Established in 2013, At Home Bathrooms combines online convenience with genuine bathroom industry expertise. We supply reliable concealed shower valves from trusted manufacturers, suitable for modern UK homes.
When ordering from us, you benefit from:
-
Fast UK mainland delivery
-
Manufacturer-backed warranties
-
Secure online checkout
-
Support before and after purchase
-
Trade account options for installers
Our triple shower valves are selected for dependable thermostatic performance and long-term durability.
Frequently Asked Questions
Can I run all three outlets at once?
Some 3 outlet valves allow simultaneous operation, though this depends on the model and water pressure.
Do I need high water pressure for a triple shower valve?
Medium to high pressure is recommended, particularly if using rainfall heads or multiple outlets together.
Can a 3 outlet valve control a bath filler?
Yes. Many triple valves are used to operate an overflow bath filler alongside shower heads.
Are 3 outlet shower valves thermostatic?
Most modern models include a thermostatic cartridge for consistent temperature control.
Are these suitable for combi boilers?
Many are compatible, though you should always check minimum pressure requirements.
