2 Outlet Shower Valves
2 Outlet / 2 Way Shower Valves
2 Outlet shower valves are also known as dual outlet or 2 way concealed shower valves are the perfect way to control the flow and temperature of the water to two outlets i.e a rainfall style shower head and also a sperate handset on a slide rail or holder. Our two outlet shower valves come in various designs and finishes to suit everyone's new bathroom! We also sell complimentary shower heads, slide rails and shower handsets. Everything you need for a new shower!
2 Outlet Shower Valves UK – Dual Outlet Concealed Thermostatic Valves
2 outlet shower valves, also known as dual outlet or 2 way shower valves, are designed to control water flow and temperature to two separate shower outlets from a single concealed valve.
Installed within the wall cavity, these thermostatic shower valves provide a clean, minimal finish while allowing flexible control over two water outputs — typically an overhead rainfall shower head and a handheld shower attachment.
At At Home Bathrooms, we supply high-quality 2 outlet concealed shower valves in a range of finishes and control configurations, suitable for modern UK bathroom renovations.
Browse our collection below and order online with fast UK mainland delivery.
What Is a 2 Outlet Shower Valve?
A 2 outlet shower valve is a concealed valve body that controls two separate shower outlets. It regulates:
-
Water temperature (via thermostatic cartridge)
-
Flow rate
-
Diverter function (switching between outlets)
The valve is installed inside the wall, with only the control plate and handles visible once fitted.
Common configurations include:
-
Overhead rainfall shower head + handset
-
Fixed shower head + slide rail kit
-
Shower head + bath filler (in certain layouts)
This makes 2-way shower valves a popular choice for contemporary bathrooms where flexibility and minimalism are both important.
How Does a Dual Outlet Shower Valve Work?

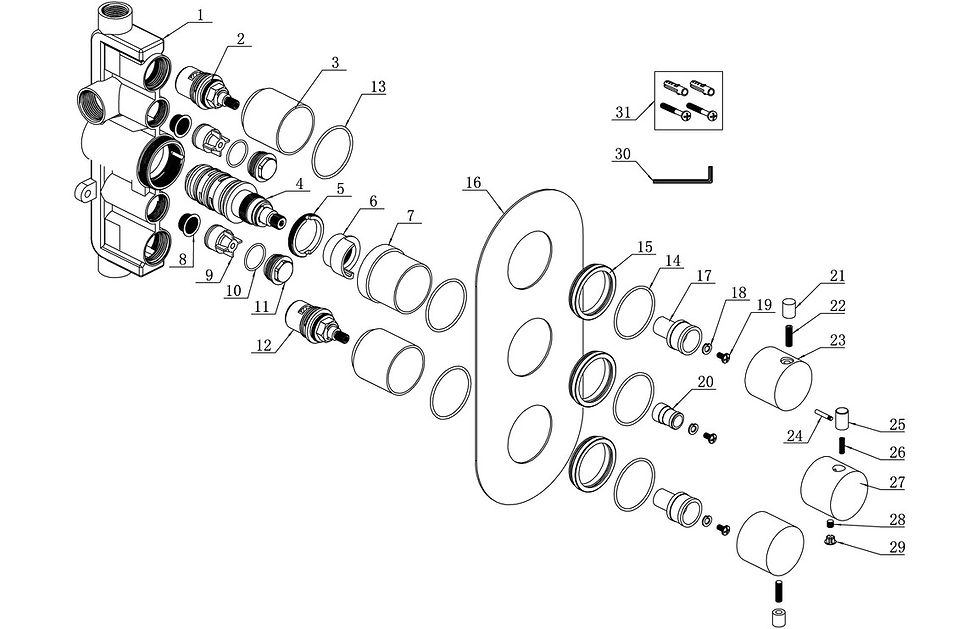

A 2-outlet concealed valve typically contains:
-
A thermostatic cartridge to stabilise temperature
-
A flow control mechanism
-
A diverter control to switch between outlets
Depending on the model, the diverter may allow:
-
Outlet 1 only
-
Outlet 2 only
-
Both outlets simultaneously
Simultaneous use depends on water pressure and system capacity. Always check product specifications if this feature is required.
2 Outlet Shower Valves vs Shower Sets
It is important to understand the difference.
A 2 outlet shower valve is the valve unit only.
A concealed shower set usually includes:
-
The valve
-
Overhead shower head
-
Shower arm
-
Handset and rail kit
Choose a valve-only option if:
-
You are sourcing shower heads separately
-
You want to customise your shower layout
-
You are replacing an existing concealed valve
If you prefer a complete package, explore our concealed shower sets instead.
When Should You Choose a 2 Way Shower Valve?
2 outlet concealed valves are ideal when:
-
Installing a rainfall head and handheld shower
-
Designing a walk-in shower enclosure
-
Creating a coordinated concealed shower system
-
Renovating walls and re-tiling
They are less suitable for simple replacements where pipework is already exposed, in which case an exposed bar shower may be more practical.
Water Pressure & Plumbing Compatibility
Before purchasing a 2 outlet shower valve, check:
Minimum Bar Pressure
Rainfall heads generally require medium to high pressure to perform effectively.
Boiler Type
Most modern thermostatic valves are compatible with:
-
Combi boilers
-
Pressurised systems
-
Pumped gravity systems
-
Simultaneous Outlet Use
If you intend to run both outlets together, confirm that:
-
Your water pressure supports it
-
The valve model allows combined flow
Selecting the correct valve for your plumbing system prevents poor performance after installation.
Control Configurations & Handle Styles
2 outlet shower valves are available in various control layouts:
Dual Control Valves
-
One control for temperature
-
One control for flow/diverter

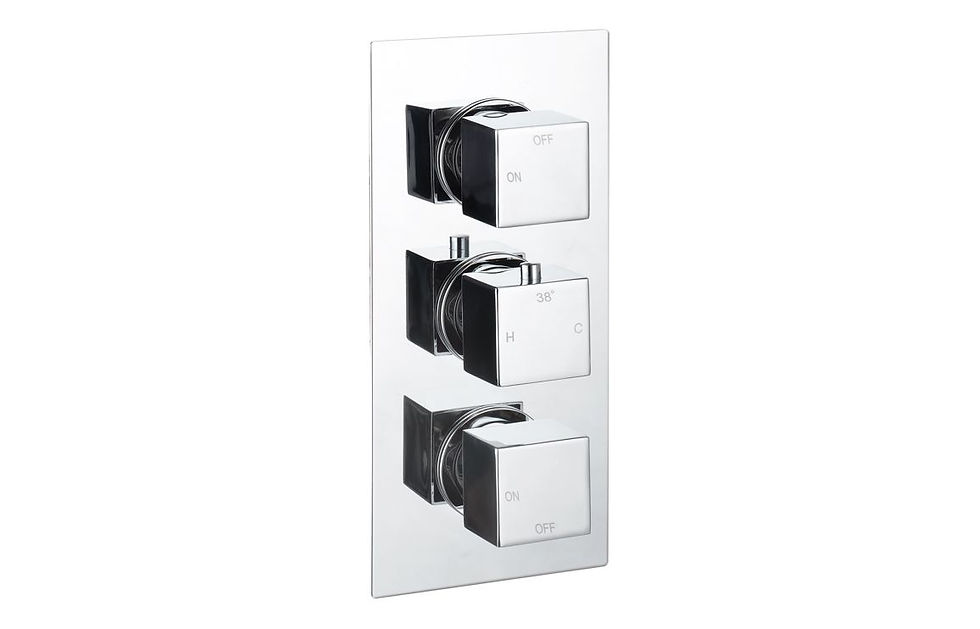

Triple Control Valves
-
Separate temperature control
-
Separate flow control
-
Independent diverter control
Triple control valves provide more precise operation and are often preferred in higher-end renovations.
Control plates are typically available in round or square designs to suit different bathroom aesthetics.
Build Quality & Internal Components
A high-quality concealed shower valve should feature:
-
Solid brass valve body for durability
-
Thermostatic cartridge for temperature stability
-
Ceramic disc technology for smooth operation
-
Replaceable components for maintenance
In hard water areas, serviceable cartridges are particularly beneficial for long-term reliability.
Finishes & Coordinated Design
Our 2 outlet shower valves are available in:
-
Chrome
-
Matt black
-
Brushed brass
-
Contemporary metallic finishes
Coordinating your valve finish with matching basin taps, bath taps and accessories creates a cohesive bathroom design.
In 2026 bathroom renovations, matching finishes across shower systems and furniture handles is increasingly popular.
Installation Considerations
Because these valves are concealed systems, installation requires:
-
Adequate wall cavity depth
-
Secure fixing points
-
Accurate pipe positioning
-
Professional fitting
They are best installed during full renovations or re-tiling projects.
Access for maintenance should be considered during planning.
Why Buy 2 Outlet Shower Valves from At Home Bathrooms?
Established in 2013, At Home Bathrooms combines online convenience with genuine bathroom industry experience. We supply reliable concealed thermostatic shower valves from trusted manufacturers designed for modern UK homes.
When ordering from us, you benefit from:
-
Fast UK mainland delivery
-
Manufacturer-backed warranties
-
Secure checkout
-
Support before and after purchase
-
Trade account options for installers
Our 2 way shower valves are selected for dependable performance, durability and design flexibility.
Frequently Asked Questions
Can I run both outlets at the same time?
Some 2 outlet shower valves allow simultaneous operation, depending on design and water pressure.
Are all 2-way shower valves thermostatic?
Most modern models include thermostatic control, though specifications should always be checked.
Can I replace a concealed valve without removing tiles?
This depends on access and installation method. In many cases, wall access will be required.
What is the difference between 2 outlet and 3 outlet valves?
A 2 outlet valve controls two water outputs. A 3 outlet valve controls three separate outlets and is typically used for more complex layouts.
Are these suitable for combi boilers?
Many models are compatible, provided minimum pressure requirements are met.
